Product Description

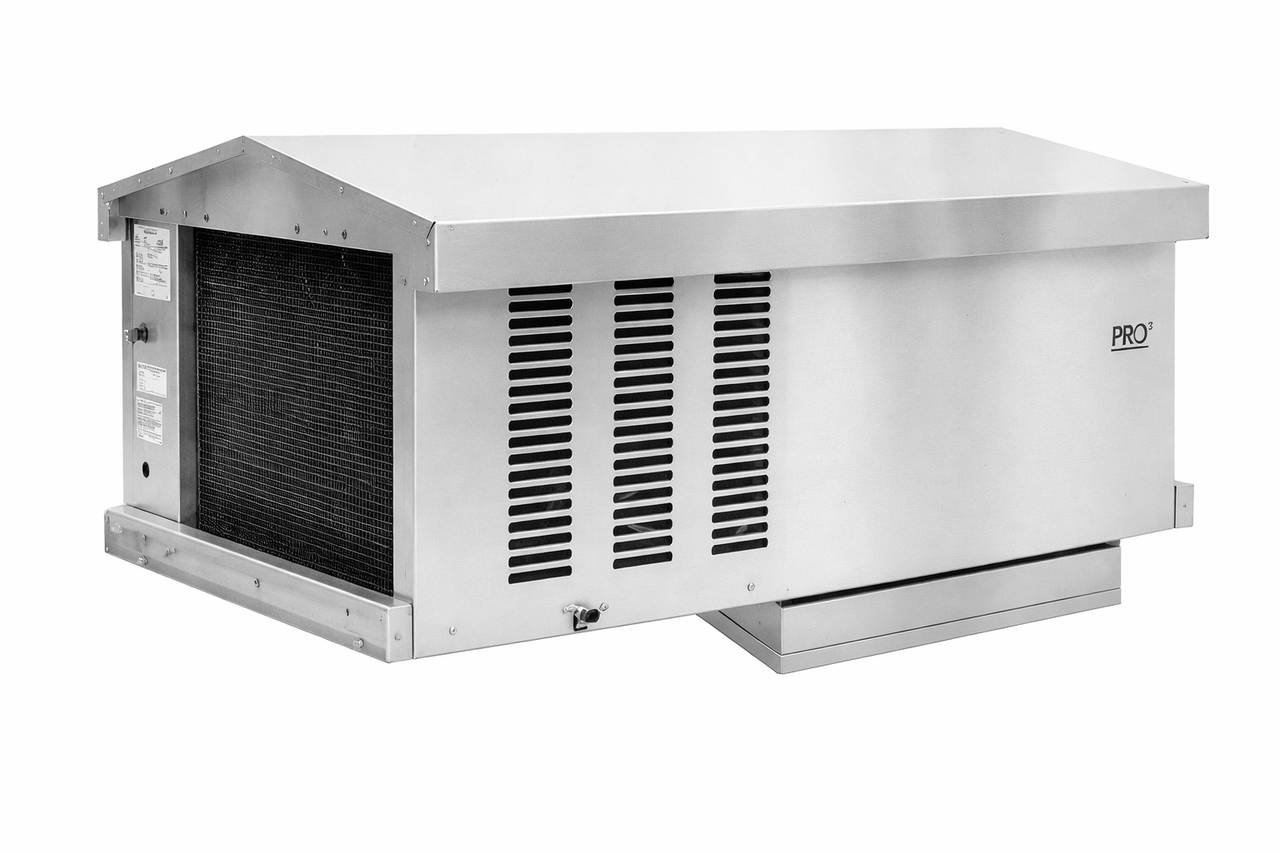

The PT0027LBTEYNA is a factory-assembled, outdoor-rated top-mount packaged freezer system engineered for low-temperature walk-in applications. Combining both the condensing unit and evaporator in a single, weather-protected housing, it mounts directly above the walk-in box to preserve interior storage space while delivering reliable sub-zero performance.
Ideal for restaurants, convenience stores, and food storage facilities, this unit provides strong pull-down capability, dependable temperature stability down to -10°F, and full compliance with DOE low-GWP refrigerant requirements.
Key Features & Benefits
-
Factory wired, evacuated, and charged — enables fast, simplified installation with minimal field labor
-
Outdoor weather-resistant construction — engineered to withstand sun, rain, wind, and debris
-
Integrated freezer package — condensing and evaporator sections combined for reduced piping and easier service
-
Low-GWP refrigerant (R-290 / A2L) — compliant with DOE and EPA environmental standards
-
Low-temperature performance — designed specifically for -10 °F freezer box conditions
-
Electric defrost system — ensures consistent frost control and coil efficiency in sub-zero environments
-
EC evaporator fan motors — 2-speed electronically commutated fans improve airflow and energy efficiency
-
UL-listed commercial build — approved for continuous-duty freezer service
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Freezer |
| Box Temperature | -10 °F |
| Cooling Capacity | 2,700 BTU/h (-10 °F box, 95 °F ambient) |
| Refrigerant | R-290 / A2L Low-GWP |
| Voltage | 230 V / 1-phase / 60 Hz |
| Defrost Method | Electric Defrost |
| Fan Type | 2-speed EC evaporator fans |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
