Product Description

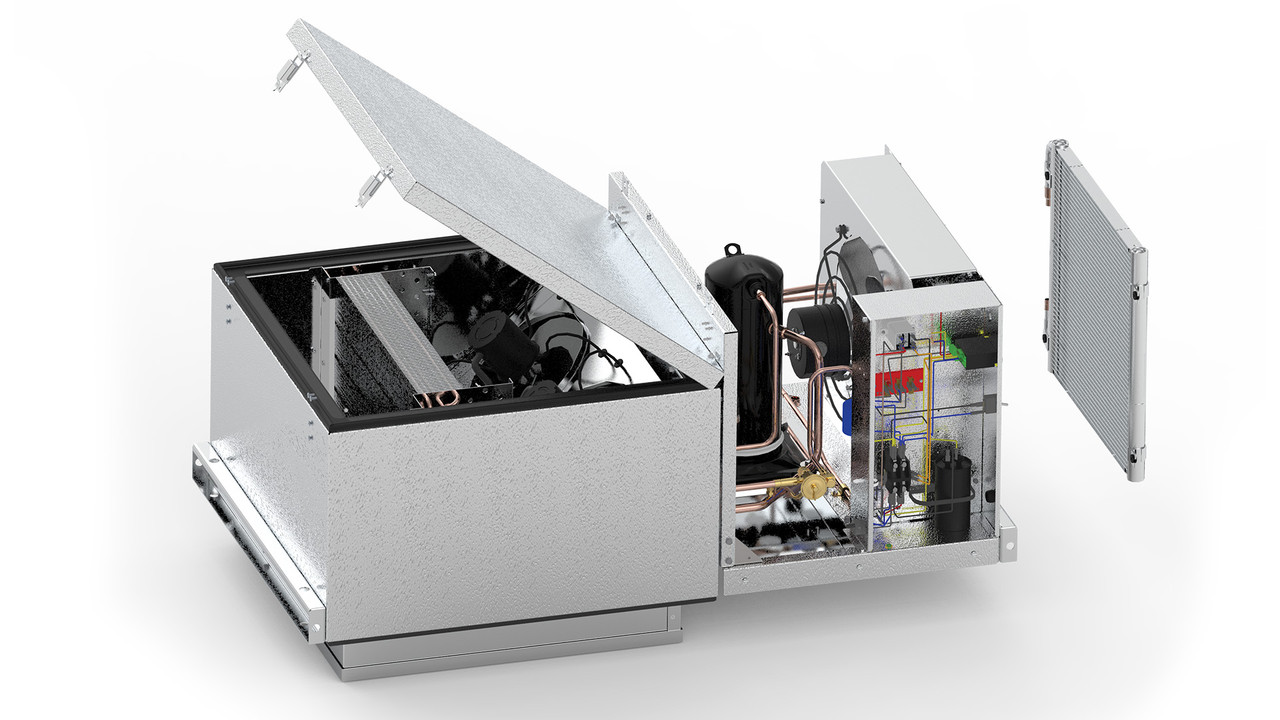

The PT0068MBTAYNA is a factory-assembled, outdoor-rated top-mount packaged refrigeration system designed for walk-in coolers. This model integrates both the condensing unit and evaporator into a single weather-protected assembly, mounting directly on top of the cooler box to preserve interior storage space while delivering reliable medium-temperature performance.
Built for commercial foodservice, supermarkets, and convenience store applications, it provides durable outdoor operation, simplified installation, and compliance with modern low-GWP refrigerant requirements.
Key Features & Benefits
-
Factory wired, evacuated, and charged — ready for installation with reduced field labor
-
Outdoor-rated construction — weather-resistant housing built to withstand sun, rain, and debris
-
Integrated cooler package — condensing and evaporator unit combined to minimize piping and installation time
-
Low-GWP refrigerant (R-455A or R-290) — compliant with current DOE and EPA regulations
-
Medium-temperature performance — engineered for 35 °F box applications with consistent pull-down capability
-
EC (electronically commutated) evaporator fan motors — 2-speed fans provide energy efficiency and stable airflow
-
Commercial-grade durability — UL-listed and built for continuous-duty outdoor operation
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 6800 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 1-phase / 60 Hz |
| Defrost Method | Air defrost |
| Evaporator Fans | 2-speed EC motors |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Certified |
