Product Description

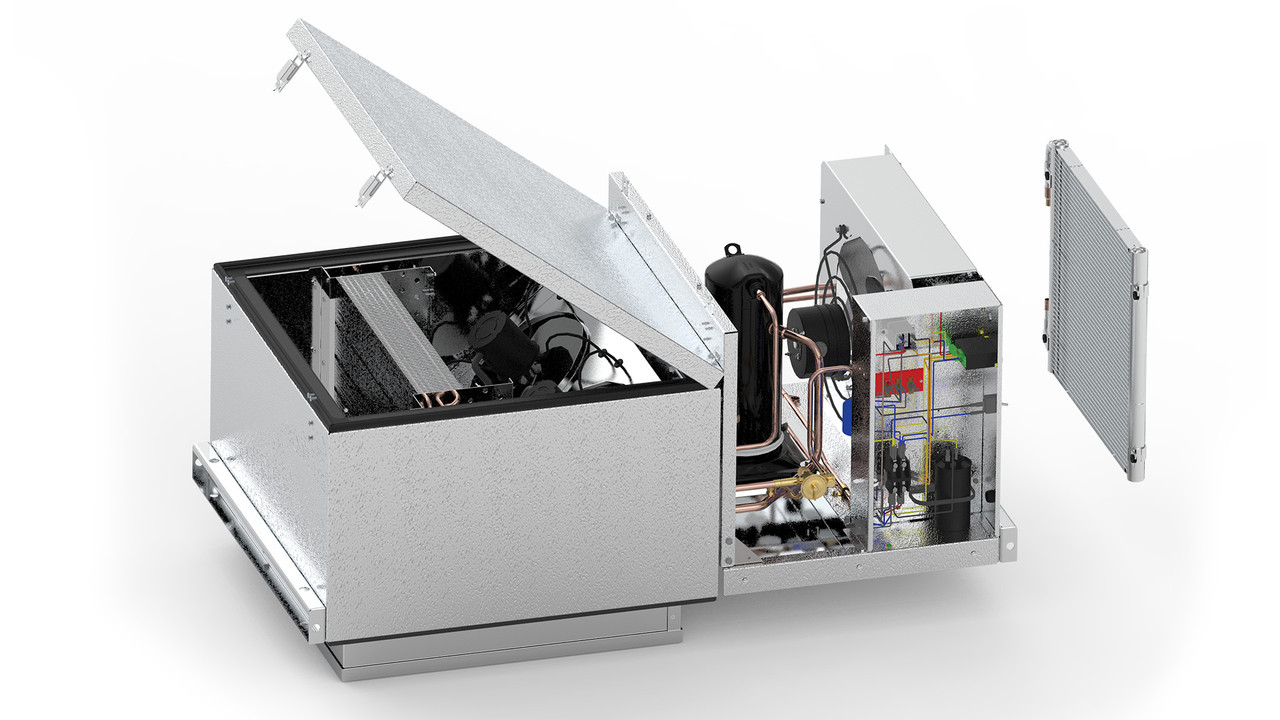

The PT0078MBNAYNA is a factory-assembled, top-mount packaged refrigeration system that integrates both a unit cooler and condensing unit into a single, efficient module. Designed to mount directly atop walk-in coolers, it maximizes interior storage space while providing dependable, high-performance cooling for medium-temperature applications.
Engineered for commercial use, this system offers excellent energy efficiency, reliability, and ease of installation, making it ideal for restaurants, supermarkets, and convenience stores.
Key Features & Benefits
-
Fully factory wired, evacuated and charged — arrives ready to install, reducing onsite labor and refrigerant handling.
-
Combines unit cooler + condensing section — streamlines installation, lowers refrigerant charge, and simplifies field connections.
-
Top-mount configuration — preserves floor space and provides easy access for service and maintenance.
-
Low-GWP refrigerant (R-455A) — environmentally responsible and compliant with DOE and EPA energy standards.
-
High efficiency with proven performance — 7,720 BTU/h cooling capacity (at 95 °F ambient, 35 °F box) and AWEF of 5.61 meet or exceed DOE baseline requirements.
-
Energy-saving EC (electronically commutated) fan motors — 2-speed evaporator fans automatically adjust to load for optimized power use.
-
Durable construction, UL listed for U.S. & Canada — ensures reliable performance in demanding commercial environments.
Standard lead time if not in stock 18 days
