Product Description

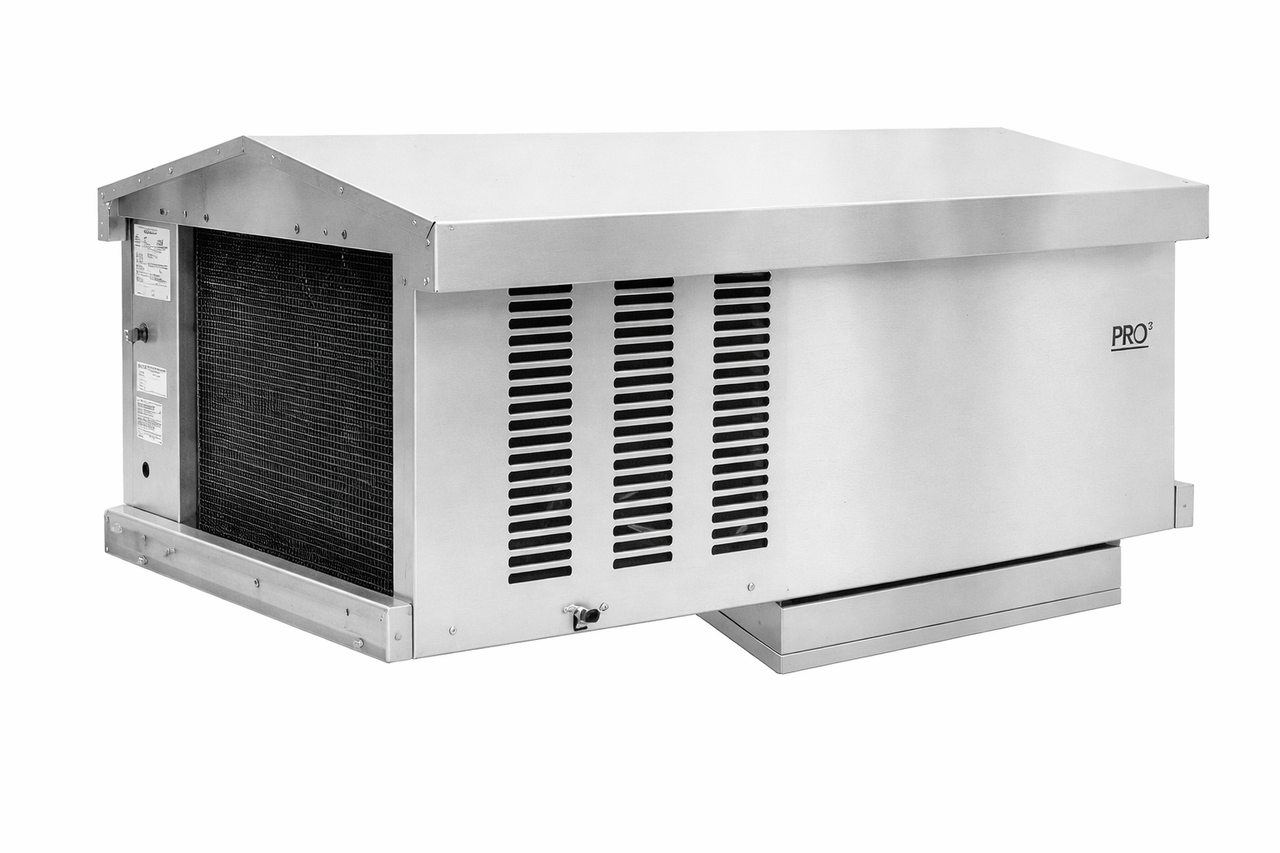

The PT0078MBTAYNA is a factory-assembled, outdoor top-mount packaged refrigeration system designed for medium-temperature walk-in cooler applications. It integrates both the evaporator and condensing unit into a single weather-protected module, mounting directly above the cooler box to maximize storage space and simplify installation.
Built for commercial foodservice, grocery, and cold storage operations, this system delivers consistent temperature control, long-term reliability, and compliance with DOE low-GWP refrigerant standards.
Key Features & Benefits
-
Factory wired, evacuated, and charged — arrives ready for quick installation with minimal field labor
-

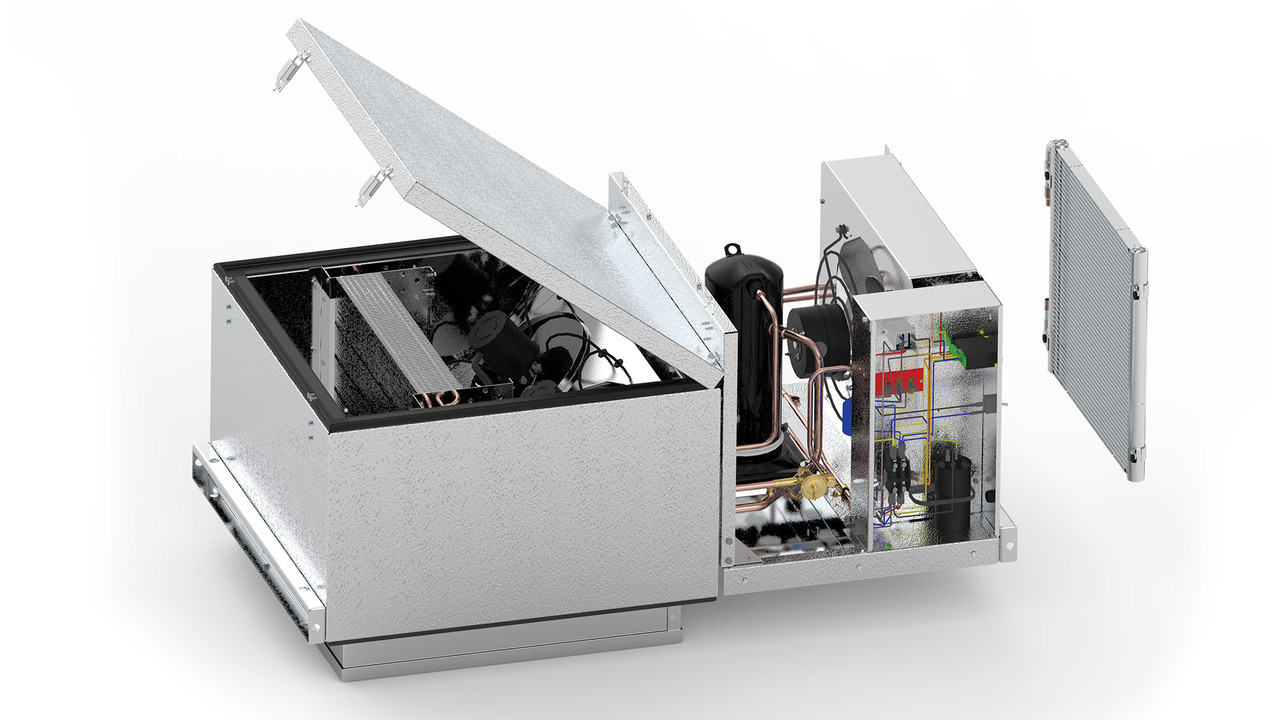

All-in-one outdoor construction — condensing and evaporator sections combined in a durable weather-resistant housing
-
Low-GWP refrigerant (R-455A or R-290) — environmentally responsible and compliant with DOE and EPA regulations
-
Medium-temperature operation — optimized for 35 °F box applications and consistent cooling performance
-
Energy-efficient EC fan motors — 2-speed electronically commutated fans ensure stable airflow and reduced power usage
-
Heavy-duty outdoor housing — corrosion-resistant design protects against rain, heat, and debris
-
UL-listed commercial construction — certified for continuous-duty use in demanding environments
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 7,800 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 1-phase / 60 Hz |
| Defrost Method | Air defrost |
| Evaporator Fans | 2-speed EC motors |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
