Product Description

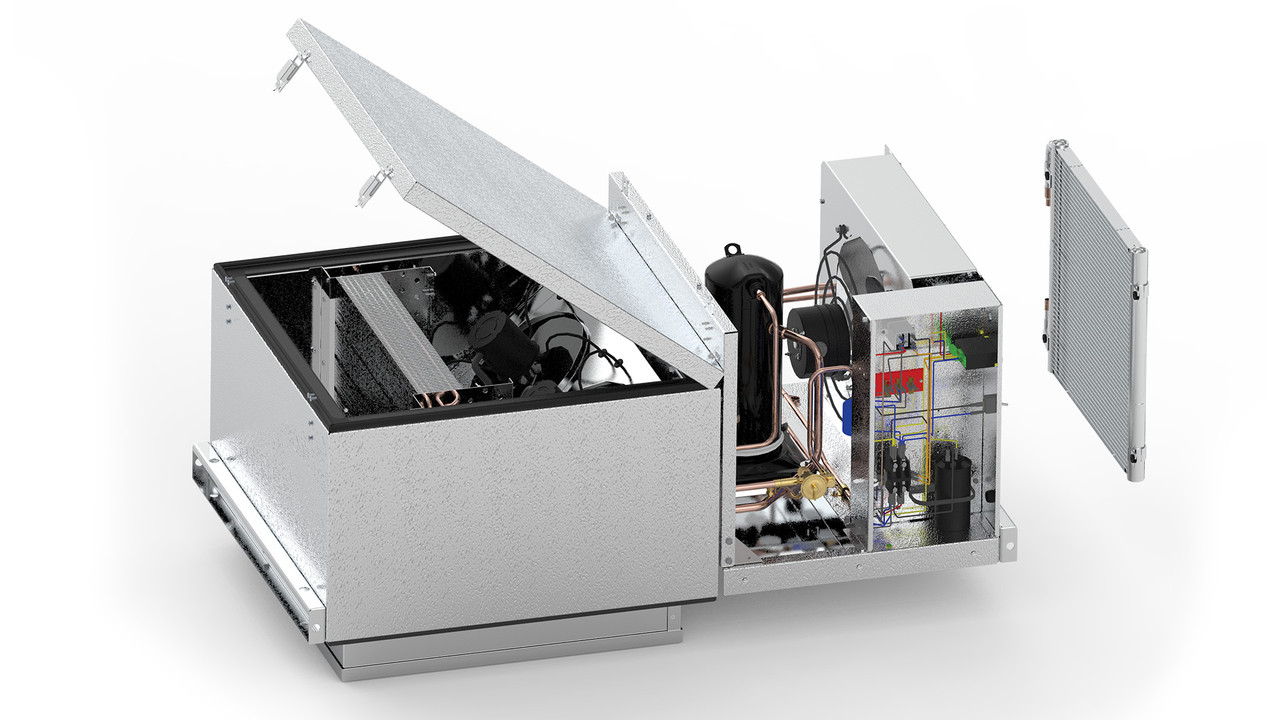

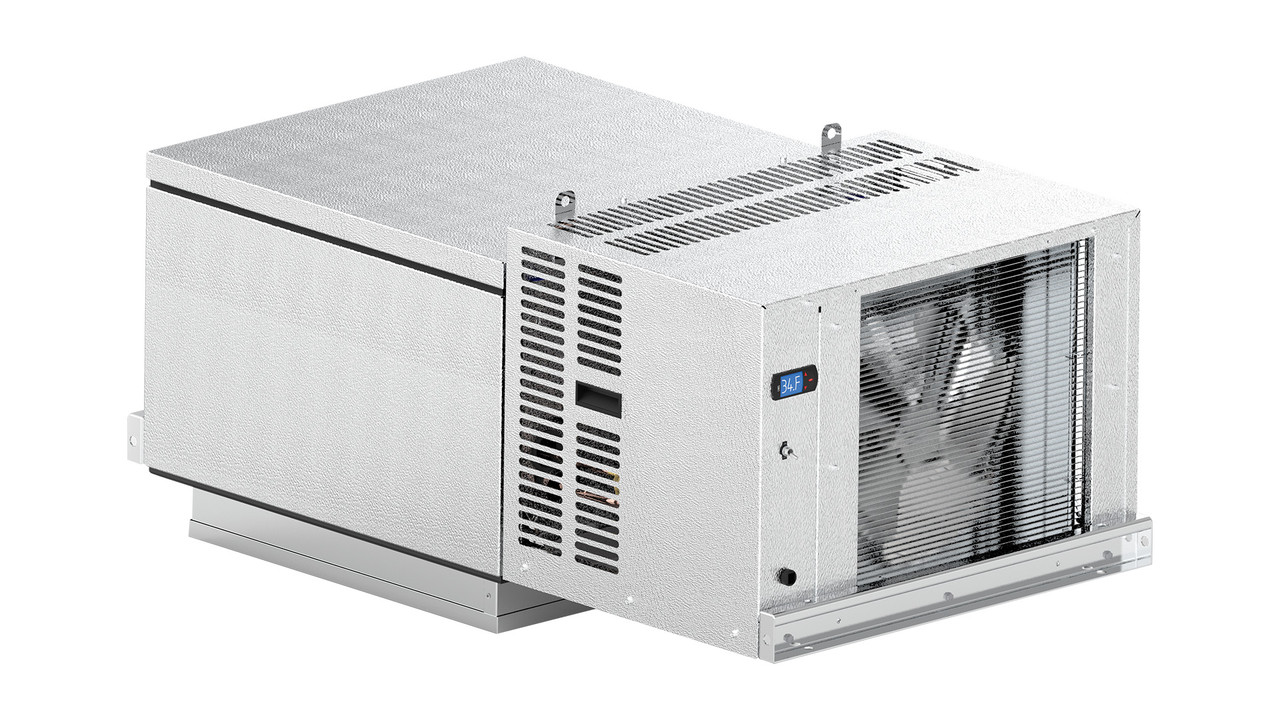

The PT0097MBTAYNA is a factory-assembled, outdoor top-mount packaged refrigeration system designed for medium-temperature walk-in coolers. This unit integrates both the condensing section and evaporator coil into a single weather-protected housing, mounting directly on top of the cooler box to maximize interior storage space and simplify installation.
Engineered for commercial foodservice, supermarkets, and cold storage environments, it provides consistent cooling performance, long service durability, and compliance with DOE low-GWP refrigerant standards.
Key Features & Benefits
-
Fully factory wired, evacuated, and charged — ready for rapid installation with minimal field labor
-
Outdoor-rated construction — weather-resistant housing protects components from rain, heat, and debris
-
Integrated cooler package — condensing and evaporator systems combined to reduce piping and shorten installation time
-
Low-GWP refrigerant (R-455A / R-290) — compliant with modern environmental regulations
-
Medium-temperature design — optimized for 35 °F walk-in cooler applications
-
EC evaporator fan motors — two-speed electronically commutated fans improve airflow and energy efficiency
-
UL-listed commercial system — built for continuous-duty operation in outdoor installations
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 9,700 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 1-phase / 60 Hz |
| Defrost Method | Air defrost |
| Evaporator Fans | 2-speed EC motors |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
