Product Description

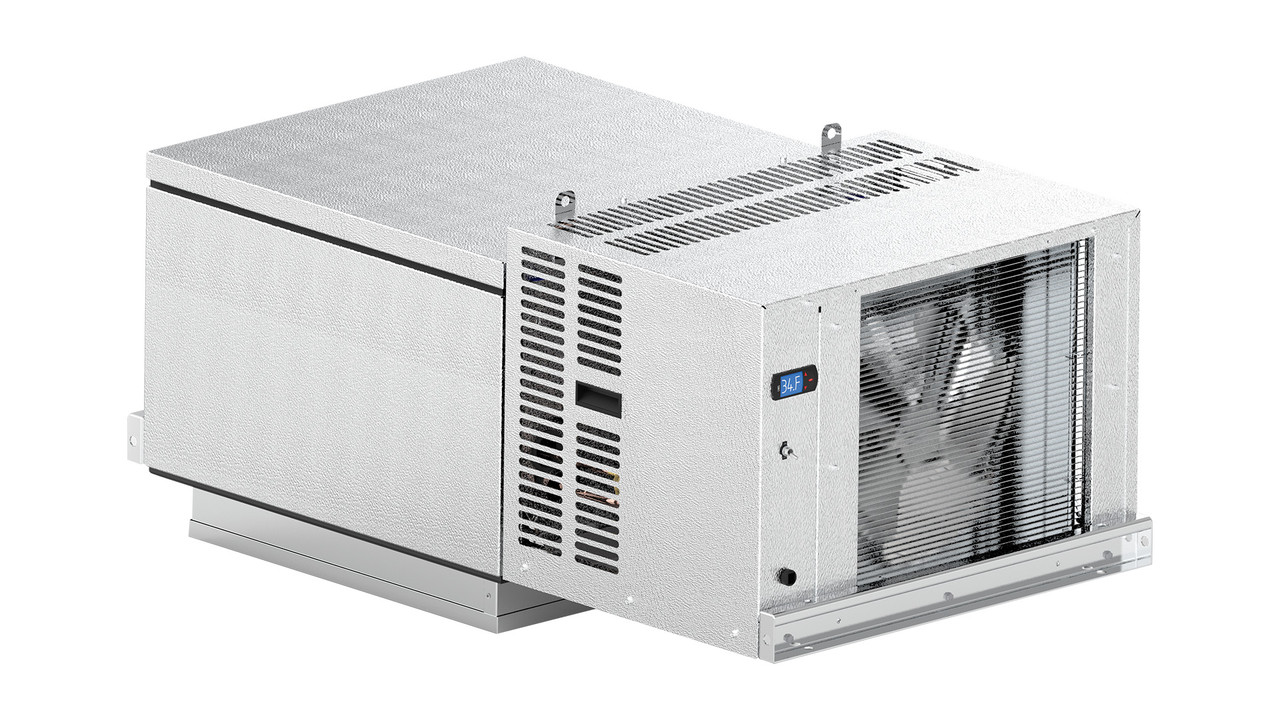

The PT0097MCTAYNA is a factory-assembled, outdoor-rated top-mount packaged refrigeration system engineered for medium-temperature walk-in coolers. Built with a fully integrated condensing unit and evaporator coil in one weather-protected housing, it mounts directly above the cooler box to preserve interior space and simplify installation.
Designed for heavy-duty commercial use, this 3-phase model delivers stable cooling, long service life, and DOE-compliant performance using modern low-GWP refrigerant technology.
Key Features & Benefits
-
Factory assembled, wired & charged — ready for quick outdoor installation with minimal field labor
-
Outdoor weather housing — corrosion-resistant enclosure protects against sun, rain, and debris
-
Integrated cooler package — condensing and evaporator sections combined to reduce piping and installation complexity
-
Low-GWP refrigerant (R-455A / R-290) — compliant with DOE and EPA regulations
-
Medium-temperature performance — optimized for 35 °F walk-in cooler applications
-
3-Phase power configuration (MC model) — enhanced electrical stability for commercial environments
-
EC fan motor technology — two-speed electronically commutated evaporator fans for energy efficiency and consistent airflow
-
UL-listed commercial construction — designed for continuous-duty outdoor operation
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 9,700 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 3-phase / 60 Hz |
| Defrost Method | Air defrost |
| Fan Type | 2-speed EC evaporator fans |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
