Product Description

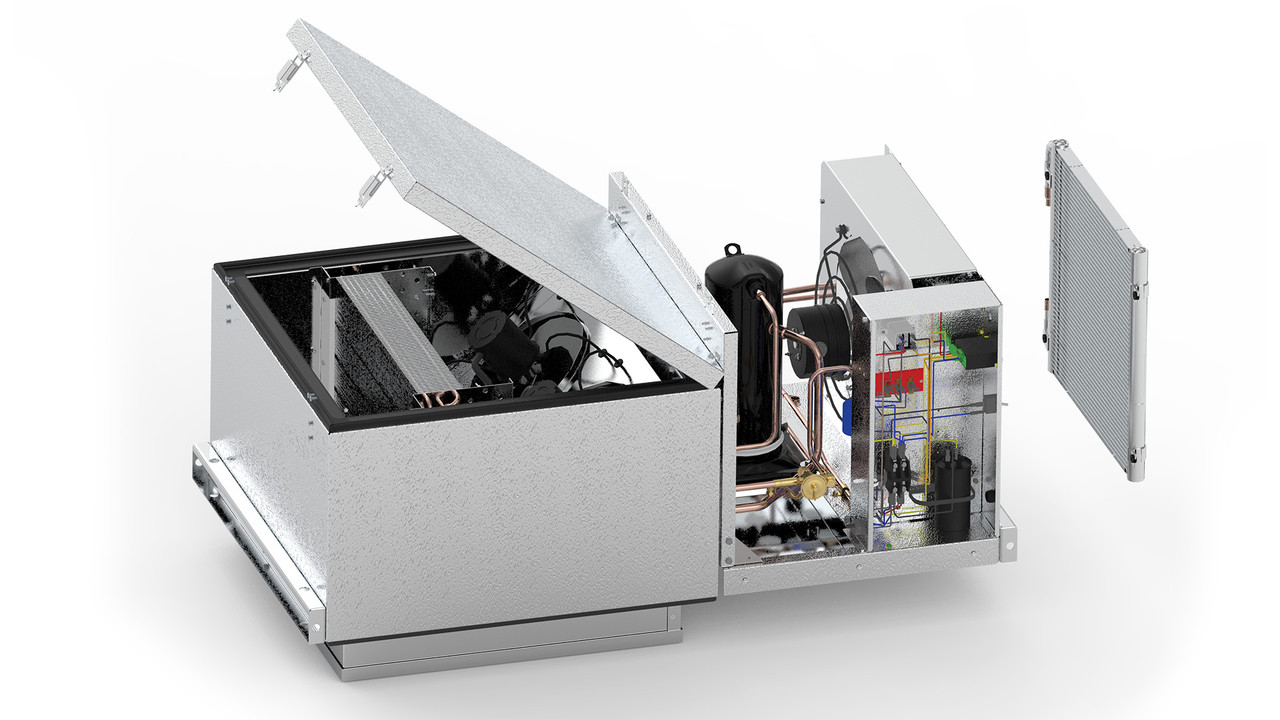

The PT0115MBTAYNA is a factory-assembled, outdoor-rated top-mount packaged refrigeration system designed for medium-temperature walk-in coolers. Combining both the condensing unit and evaporator into one weather-protected module, it mounts directly on top of the cooler box to maximize storage space and simplify installation.
Engineered for commercial foodservice, markets, and cold storage environments, this model delivers higher capacity cooling performance while maintaining DOE-compliant efficiency and low-GWP refrigerant standards.
Key Features & Benefits
-
Factory wired, evacuated, and charged — ready for rapid installation with minimal field labor
-
Outdoor-rated weather housing — corrosion-resistant enclosure protects against heat, rain, and debris
-
Integrated cooler package — evaporator and condensing systems combined to reduce piping and setup time
-
Low-GWP refrigerant (R-455A / R-290) — aligned with DOE & EPA regulations
-
Medium-temperature performance — optimized for 35 °F walk-in cooler environments
-
EC evaporator fan motors — two-speed electronically commutated fans improve airflow and energy efficiency
-
UL-listed commercial build — designed for continuous-duty operation in demanding outdoor applications
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 11,500 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 1-phase / 60 Hz |
| Defrost Method | Air defrost |
| Fan Type | 2-speed EC evaporator fans |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
