Product Description

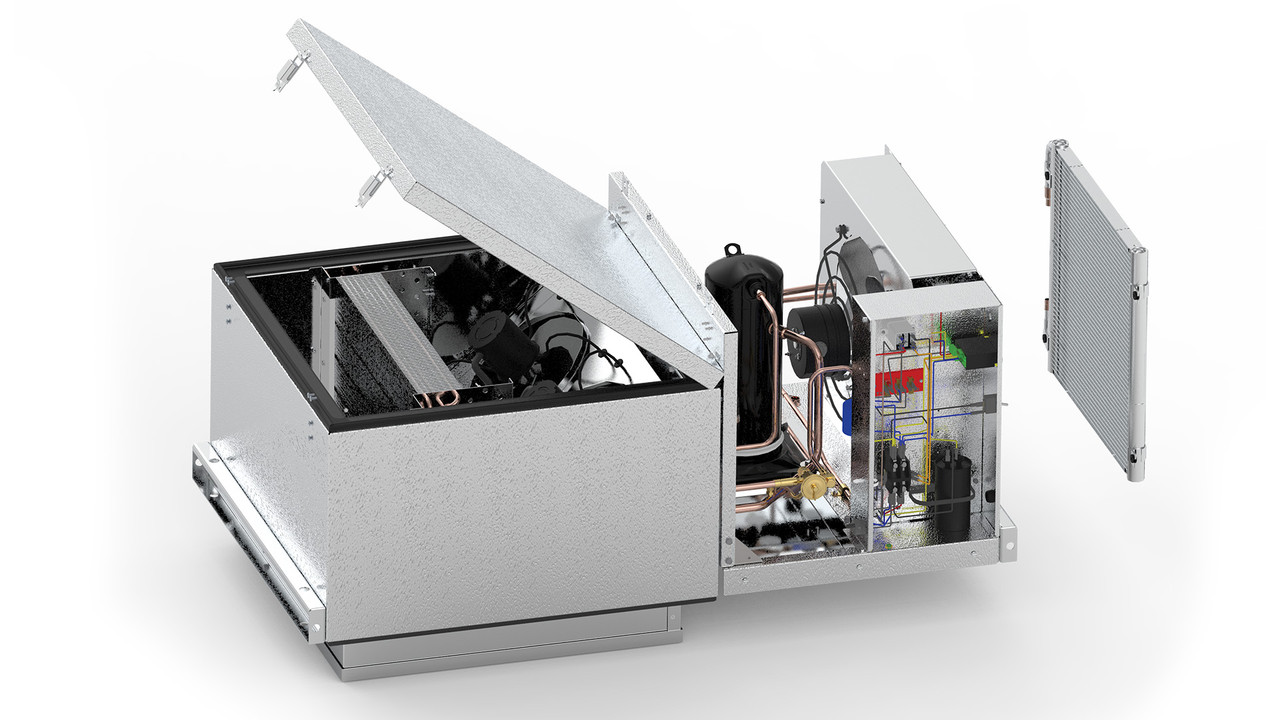

The PT0115MCTAYNA is a high-capacity, outdoor-rated top-mount packaged refrigeration system engineered for medium-temperature walk-in coolers. This model integrates both the condensing unit and evaporator into one weather-protected housing and mounts directly on top of the cooler box, freeing up interior storage space and simplifying installation.
Designed for commercial environments requiring 3-phase power, it delivers reliable cooling performance, long service durability, and modern low-GWP refrigerant compliance.
Key Features & Benefits
-
Factory assembled, wired, and charged — ready for immediate installation with minimal field labor
-
Heavy-duty outdoor housing — corrosion-resistant and built to withstand rain, heat, and debris
-
Integrated cooler configuration — condensing and evaporator systems combined to reduce piping and setup complexity
-
Low-GWP refrigerant (R-455A / R-290) — compliant with DOE and EPA sustainability standards
-
Medium-temperature operation — engineered for 35 °F walk-in cooler applications
-
3-Phase electrical design (MC model) — provides enhanced stability and efficiency for larger commercial systems
-
EC evaporator fan motors — two-speed electronically commutated fans ensure efficient airflow and reduced power consumption
-
UL-listed commercial performance — designed for continuous-duty operation in outdoor conditions
Technical Specifications (Highlights)
| Parameter | Value |
|---|---|
| Application | Outdoor Cooler |
| Cooling Capacity | 11,500 BTU/h (35 °F box, 95 °F ambient) |
| Refrigerant | R-455A / R-290 Low-GWP |
| Voltage | 208–230 V / 3-phase / 60 Hz |
| Defrost Method | Air defrost |
| Fan Type | 2-speed EC evaporator fans |
| Installation | Top-mount (outdoor) |
| Compliance | DOE & EPA Low-GWP Certified |
